The 32S-1 Transmitter develops 100 watts output power (nominal) on all amateur bands between 3.4 and 30 mc.  Input power is 175 watts PEP on SSB or 160 watts CW.

The 32S-1 has band switch positions and corresponding crystal sockets for fourteen 200 kc bands.  Crystals are furnished for complete coverage of all amateur bands except 10 meters.  One 10 meter crystal is furnished to cover 28.5 - 28.7 mc, and the crystal mounting block has extra sockets for two additional crystals.  One other spare crystal socket and band switch position are provided for an additional band between 9.5 and 15.0 mc.  Other crystals may be substituted for those furnished to place the transmitter at other frequencies throughout the range.

Power supply voltages may be supplied with Collins Power supplies 516F-2 (ac source), 516E-1 (12 volt dc source), 516E-2 (24 volt dc source), or 516F-1 with adapter cable.  Any high-impedance crystal or dynamic microphone and any key may be used with the 32S-1 Transmitter.

Size and Weight:
  • Size of cabinet is 6 9/16" high, 14 3/4" wide, 11 1/2" deep
  • Weight is 16 lbs.

Information from Collins/Rockwell 32S-1 Transmitter Instruction Manual

Click on thumbnails for larger pictures.

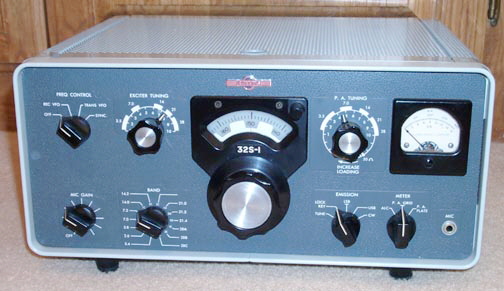

Front of 32S-1        Top inside of 32S-1      Top Inside 32S-1
